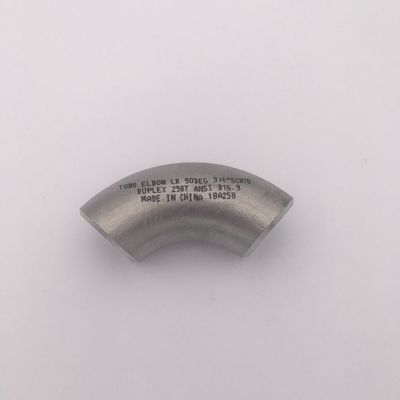

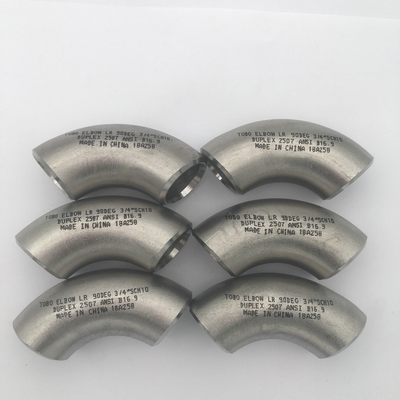

Pipe Fitting Duplex Stainless Steel 90Deg Elbow LR UNS S32750 / 2507 3/4'' SCH10 ASME B16.9
제품 상세 정보
| 상표 | 토보 | 제품명 | 팔꿈치 |
|---|---|---|---|
| 재료 | UNS S32750/2507 | 기준 | ASME B16.9 |
| 애플리케이션 | 배관계 연결 | OD | 3/4'' |
| WT | SCH10 | 포장 | 합판 케이스 |
| 프로세스 | 원활한 | ||
| 강조하다 | Duplex stainless steel pipe elbow,3/4 inch SCH10 pipe fitting,ASME B16.9 butt weld fittings |
||
제품 설명
Pipe Fitting Duplex Stainless Steel 90Deg Elbow LR UNS S32750 / 2507 3/4'' SCH10 ASME B16.9
| Main Production Name | 45 / 90 / 180 Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric /Eccentric Reducers, Caps, Stub Ends, Taper tube etc. |
| Size | 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Wall thickness | Sch5~Sch160XXS |
| Manufacture Standard: | ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631, |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Duplex steel | UNS S31803/2205; UNS S32750/2507; UNS S32760 |
| Nickel alloy steel |
Alloy 200/Nickel 200/N02200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/N02201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/N04400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/N06600/NS333/2.4816; Alloy 601/Inconel 601/N06001/2.4851; Alloy 625/Inconel 625/N06625/NS336/2.4856; Alloy 718/Inconel 718/N07718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/N08800/1.4876; Alloy 800H/Incoloy 800H/N08810/1.4958; Alloy 800HT/Incoloy 800HT/N08811/1.4959; Alloy 825/Incoloy 825/N08825/2.4858/NS142; Hastelloy C/Alloy C/N06003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/N06455/NS335/2.4610; Alloy C-22/Hastelloy C-22/N06022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/N06002/2.4665; Alloy G-30/Hastelloy G-30/N06030/2.4603; Alloy X-750/Inconel X-750/N07750/GH145/2.4669; Alloy 20/N08020; Alloy 31/N08031/1.4562; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
|
Welcome to contact us. |
|
What is super duplex 2507 pipe fittings?
In scenarios where we need high strength and good corrosion resisting properties, the best pipe fitting for this purpose would be SDSS 2507 pipe fittings. This pipe fitting also inherits good corrosion resistance to crevice and pitting, thanks to the presence of nitrogen, chromium and molybdenum in large contents.
Adding to this, they even show appreciating resistance to chloride stress corrosion cacking, along with exhibiting good mechanical and weldability characteristics.
What industries require super duplex 2507 pipe fittings?
Because of their ability to resist corrosion, super duplex 2507 seamless fittings are widely demanded by many industries to meet their needs and standards. Below are some of the listed industries:
- super duplex 2507 reducing tee is used in marine engineering to withstand extreme corrosive scenarios.
- Chemical processing equipment based industries also require 2507 super duplex buttweld fittings.
- Petrochemical industries also use SDSS tube elbow.
- They are also widely used in water desalinization.
- SAF 2507 concentric reducer is also used in oil and gas production.
What are the advantages of using super duplex 2507 pipe fittings?
Considering wide range of industries demanding super duplex 2507 welded fittings, advantageous characteristics are delivered and below are some of the listed advantages:
- Elevated temperature resistance is provided by DIN 1.4507 equal tee.
- Other than the other grades of stainless steel, they have twice more strength,
- This material can be strengthened by the heat treatment process.
- SDSS pipe cap also can be cold formed.
