제품 상세 정보
| 유형 | 니켈 합금 강관 이음쇠 90 LR SMLS 팔꿈치 6" STD 합금 625 맞대기 용접 이음쇠 | 기준 | ASTM B363 WPT2 |
|---|---|---|---|
| 크기 | 1/2''~16'(원활한);16''~36''(용접) | 벽 두께 | 2.0-19.0mm |
| 제조공정 | 밀고, 누르기, 위조, 캐스트 등 | 재료 | 탄소강, 스테인레스 강, 합금강, 듀플렉스 스테인레스, 니켈 합금강 |
| 강조하다 | Nickel Alloy Steel Butt Weld Elbow,90D LR Elbow Alloy 600,ASME B16.9 Butt Weld Fittings |
||
제품 설명

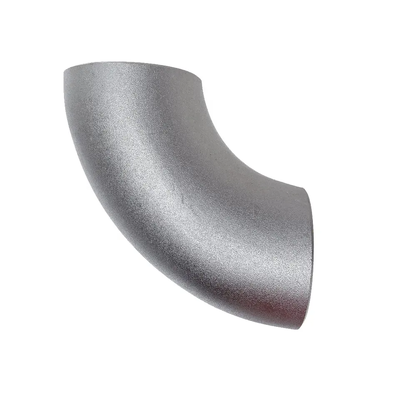

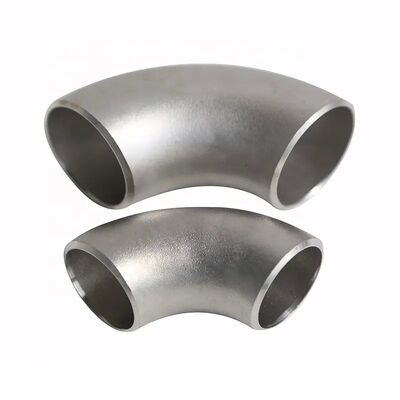

Nickel Alloy Steel Butt Welding Elbow 90D LR Elbow Alloy 600 ASME B16.9
|
Type |
Nickle Alloy Steel Pipe Fittings 90 LR SMLS Elbow 6" STD Alloy 625 Butt Welding Fitting |
|
Standard |
ASTM B363 WPT2 |
|
Size |
1/2’’~16’(Seamless);16’’~36’’(Welded) |
|
Wall thickness |
2.0-19.0mm |
|
Manufacturing process |
Push, Press, Forge, Cast, etc. |
|
Material |
Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
|
Carbon steel |
ASTM A234 WPB, WPC; |
|
Stainless steel |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
|
Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
|
Duplex steel |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
|
Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; Alloy 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Alloy C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Alloy C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Alloy 31/NO8031/1.4562; Alloy 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |
|
Package |
Wooden cases, pallets, nylon bags or according to the customers' requirements |
|
MOQ |
1pcs |
|
Delivery time |
10-100 days depending on quantity |
|
Payment terms |
T/T or Western Union or LC |
|
Shipment |
FOB Tianjin/Shanghai, CFR, CIF, etc |
|
Application |
Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
|
Remarks |
Other materials and drawings are available. |
Introduction
In a pipe system, an elbow is a pipe fitting that changes the direction of the pipe. According to the angle, there are three most commonly used elbows: 45 ° and 90 ° and 180 °. In addition, 60 ° and other abnormal angle elbows are also included according to the needs of the project. Elbow materials include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics.
The connection methods with pipes include direct welding (the most commonly used method), flange connection, hot melt connection, electric fusion connection, threaded connection and socket connection. According to the production process, it can be divided into: welding elbow, stamping elbow, pushing elbow, casting elbow, butt welding elbow, etc. Other names: 90 degree elbow, right angle bend, etc.
The structure of Monel 400 (UNS N04400, NCu30) is a high-strength single-phase solid solution, which is a corrosion resistant alloy with the largest amount, the most widely used and excellent comprehensive performance. This alloy has excellent corrosion resistance in hydrofluoric acid and fluorine medium, and also has excellent corrosion resistance to hot concentrated alkali solution. At the same time, it is also resistant to corrosion of neutral solution, water, seawater, atmosphere, organic compounds, etc. An important feature of the alloy is that it generally does not produce stress corrosion cracks and has good machinability.
