Pipe CuNi 90/10 Seamless Copper Nickel Tube 44.5 X 2.5MM EEMUA144
제품 상세 정보
| 제품명 | 구리-니켈 파이프 | 제품 유형 | 곧은 구리관 |
|---|---|---|---|
| 기술 | 원활한 | 재료 등급 | 크쿠니 90/10 |
| 용법 | 온수기 | 외경 | 44.5 mm |
| 벽 두께 | 2.5mm | 가격 | 협상 가능 |
| Cu(분) | 90% | ||
| 강조하다 | Seamless Copper Nickel Tube 44.5mm,CuNi 90/10 Pipe 2.5mm,EEMUA144 Copper Nickel Tube |
||
제품 설명

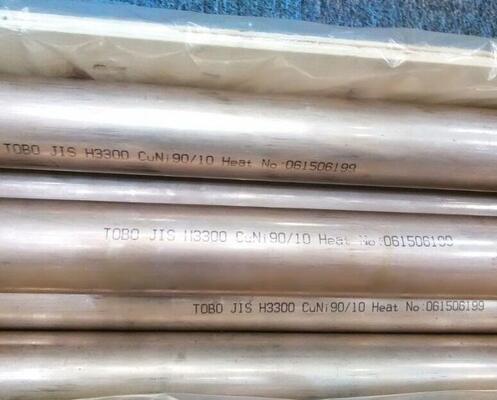

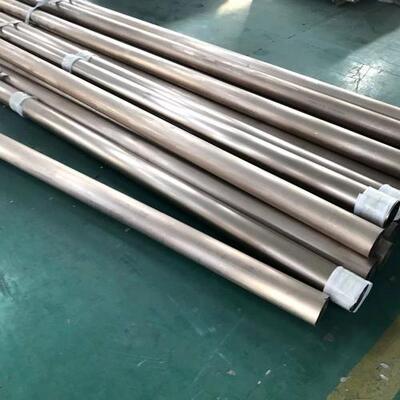

Pipe CuNi 90/10 Seamless Copper Nickel Tube 44.5 X 2.5MM EEMUA144
-
90/10 Cupro Nickel is widely used in sea water. It has very good corrosion resistance to clean moderately polluted marine or estuary water, even containing dissolved incondensable gases.
-
This alloy is virtually immune from stress-corrosion cracking and hot spot denickelification.
-
In clean sea water, a velocity of up 2.2-2.5 m/s (7.5-8.5 ft/s) is accepted while 4 m/s (13 ft/s) is the upper limit for clean fresh or slightly saline solutions.
LIST OF STANDARD C706 SIZES
Round Bar: ¼” Dia. thru 10”
Sheet:065”, .125”
Plate:3/16” thick thru 3”
Tube: Condenser tube
Pipe:¼” Standard (SCH 40) thru 10”
¼” Extra Heavy (SCH 80) thru 4”
½” Class 200 Mil-T-16420 K thru 10”
Fittings: Class 200, SCH 40, SCH 80, Butt-weld Fittings
Threaded and Socket-weld Fittings, 3000#/6000#
C96200 400# Socket-weld Fittings
Flanges: Slip-on, threaded, blind, Weld-neck Flanges
Ameritube has been providing C70600 Copper Nickel 90/10 according to the following standards:
- ASME SB-111
- ASME SB-466
- ASTM B-111
- ASTM B-466
- MIL-T-15005f
- MIL-T-16420k Class 200, 700, 1650, 3300, and 6000
Typical Uses for C706 Copper Nickel "90/10":
AUTOMOTIVE: Power Steering Tube, Brake Lines
CONSUMER: Screw Lamp Bases
INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies,
Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
Equivalencies Copper Nickel (90/10) tube/pipe
| KS D5301 JIS H3300 |
C7060T |
| ASTM B111 | C70600 |
| ASTM B466 | C70600 |
| BS2871 {PART2} | CN102 |
| AS1752 | C70600 |
| DIN17664 | CuNi10Fe 1Mn |
| DIN 86019 WL2.1972 | CuNi10Fe 1.6Mn |
| EEMUA 144 | 7060X |
| MIL-T-16420K | 706 |
| EN12449 | CW352H |
PLUMBING: Flanges
| Brand Name: | TOBO |
| Model Number: | 90/10 Copper nickel alloy |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Place of Origin: | China |
