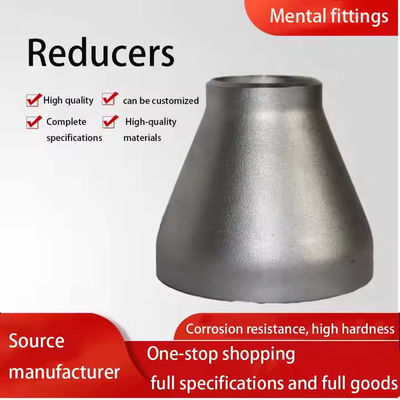

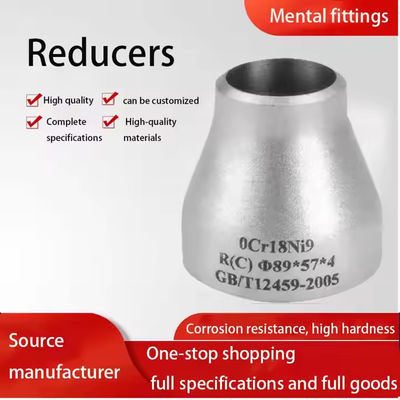

ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
제품 상세 정보
| 유형 | 편심 감속기, 동심 감속기 | 재료 | ASTM A403 WP316, WP316L |
|---|---|---|---|
| 크기 범위 | 1/2인치 ~ 24인치(DN15-DN600) | 벽 두께 | SCH40S, SCH80S, SCH10S, SCH160, 성병, XS, XXS |
| 기준 | ASME B16.9, MSS SP75, EN10253, DIN2605 | 공예 | 냉간 성형, 용액 소둔 및 산세 |
| 강조하다 | Eccentric Pipe Reducer,WP316L Butt Weld Reducer,Stainless Steel Reducer |
||
제품 설명
ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld
Product Specifications
| Type | Eccentric Reducer, Concentric Reducer |
|---|---|
| Material | ASTM A403 WP316, WP316L |
| Size Range | 1/2 Inch to 24 Inch (DN15-DN600) |
| Wall Thickness | SCH40S, SCH80S, SCH10S, SCH160, STD, XS, XXS |
| Form | Seamless and Welded |
| Standard | ASME B16.9, MSS SP75, EN10253, DIN2605 |
| Technics | Cold Forming, Solution Annealed and Pickled |
| Application | Chemical Processing, Marine, Offshore, Oil and Gas |
Dimension Chart (ASME B16.9 Eccentric Reducer)
| DN | NPS | Large OD (mm) | Small OD (mm) | End to End H (mm) |
|---|---|---|---|---|
| 25x20 | 1x3/4 | 33.7 | 26.9 | 51 |
| 40x25 | 1-1/2x1 | 48.3 | 33.7 | 64 |
| 50x32 | 2x1-1/4 | 60.3 | 42.4 | 76 |
| 65x50 | 2-1/2x2 | 73.0 | 60.3 | 89 |
| 80x50 | 3x2 | 88.9 | 60.3 | 89 |
| 100x65 | 4x2-1/2 | 114.3 | 73.0 | 102 |
| 125x100 | 5x4 | 141.3 | 114.3 | 127 |
| 150x100 | 6x4 | 168.3 | 114.3 | 140 |
| 200x125 | 8x5 | 219.1 | 141.3 | 152 |
| 250x150 | 10x6 | 273.0 | 168.3 | 178 |
| 300x200 | 12x8 | 323.9 | 219.1 | 203 |
| 350x250 | 14x10 | 355.6 | 273.0 | 330 |
| 400x300 | 16x12 | 406.4 | 323.9 | 356 |
Wall Thickness Schedule
| Schedule | Wall Thickness Range | Typical Application |
|---|---|---|
| SCH10S | Light Wall | Low Pressure, General Service |
| SCH40S | Standard Wall | Medium Pressure Process Piping |
| SCH80S | Extra Strong | High Pressure, Corrosive Service |
| SCH160 | Double Extra Strong | Very High Pressure Applications |
| XXS | Maximum Wall | Extreme Pressure, Critical Service |
Quality Features
- Molybdenum-enhanced 316L for superior chloride corrosion resistance
- Eccentric design eliminates vapor pocket formation in horizontal lines
- ISO/TUV/SGS certified production with full material traceability
- Available in both seamless and welded construction
- Non-destructive testing available: UT, RT, PT upon request
- Fast delivery within 15-30 workdays for stock and production orders
