316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#

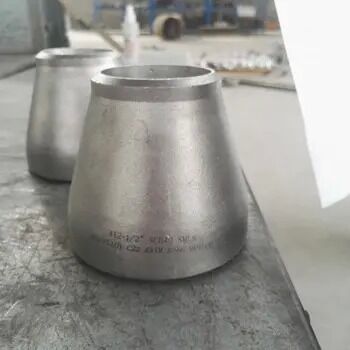

  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#

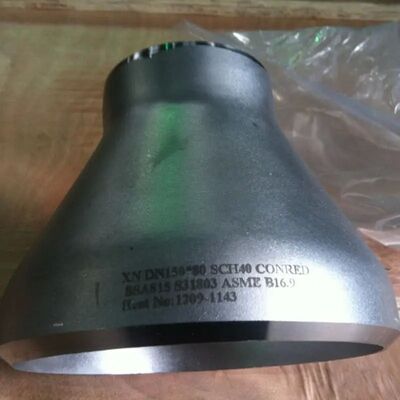

  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#

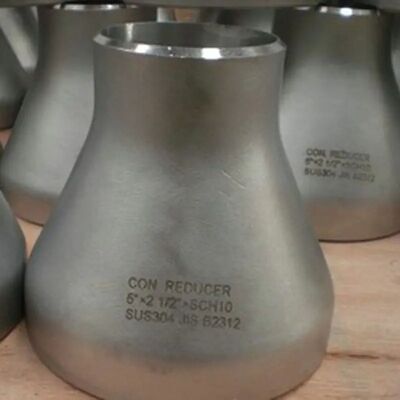

  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#

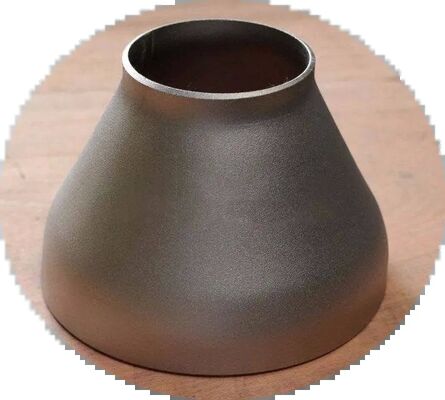

  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
원래 장소 중국 상하이
브랜드 이름 TOBO
인증 ISO/TUV/SGS
모델 번호 스테인레스 강 환원제
최소 주문 수량 1개
가격 협상 가능
포장 세부 사항 표준 배송 패키지
배달 시간 15-30 근무일
지불 조건 T/T, 서부 동맹
공급 능력 10개 톤 / 달
제품 상세 정보
제품명 스테인레스 스틸 316L 맞대기 용접 감속기 ASME B16.9 파이프 어댑터 클래스 150 300# 크기 감속기 1/2''-40'' 감속기
지불 전신환, L/C (신용장), 웨스턴 유니온, 자금 그램 열처리 단련하, 부드러워지는 것 정상화하기
OEM 사용 가능 주요 표준 ASTM, ANSI, DIN, GOST, BS, GB
표면 처리 세련된/아연 도금 포장 유형 나무 케이스
압력 150LB-2500LB 벽 두께 SCH 5 - SCH XXS
이메일 andyhuang@cnjdgy.com 헤드 코드 둥근
온도 등급 200' Ｃ에 대한 -20' Ｃ 표준 명세서 ASTM,JIS,BS,DIN,UNI 등
서비스 OEM 서비스 줄기기 도매용 플랜지
강조하다

316L Stainless Steel Butt Weld Reducer

,

ASME B16.9 Standard Pipe Adapter

,

Class 150 300# Stainless Steel Reducer
메시지를 남겨주세요
제품 설명

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings


1. Product Description

The Stainless Steel Reducer is a high-integrity pipe fitting engineered for reliable diameter reduction or expansion within fluid handling systems. Fabricated from premium corrosion-resistant alloys, it delivers smooth transitional geometry that minimises flow disturbance. Offered in Concentric (axially symmetric) and Eccentric (flat-aligned offset) configurations, it accommodates diverse installation orientations and service conditions.


2. Product Applications

  • Long-distance oil & gas trunk lines

  • Refinery and cracking units

  • Industrial water distribution and desalination plants

  • Thermal, combined-cycle and nuclear power stations

  • Sterile processing in  biotechnology

  • CIP/SIP systems in dairy, brewery and juice production

  • Floating production storage and offloading (FPSO) vessels

  • Metallurgical and mining slurry handling

  • District heating and cooling networks

​

​3.Product Advantages

  • Wide selection of austenitic, ferritic and duplex stainless steels to match specific corrosivity levels.

  • Superior dimensional consistency – roll‑formed or forged construction with fully penetrated weld preparation.

  • Enhanced structural integrity – seamless designs eliminate seam-related failure modes; welded options offer cost-effectiveness for large diameters.

  • Excellent surface finish options reduce fouling and facilitate clean-in-place operations.

  • Engineered transition profile yields pressure recovery and energy savings over extended duty cycles.

  • Full traceability with heat number stamping and mill test certificates (EN 10204 3.1/3.2).

  • Flexible manufacturing – non-standard diameters, custom wall thicknesses and special bevel angles accepted.

​316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300# 0​

4.Key Product Parameters



Parameter Specification / Range
Base Materials 304, 304L, 316, 316L, 317L, 321, 310S, 347H, 904L, 2205 Duplex, 2507 Super Duplex
Production Route Seamless (cold drawn / extruded) or Welded (longitudinal seam, plate-formed)
Seamless Size Range 1/2" – 20" (DN15 – DN500)
Welded Size Range 1/2" – 48" (DN15 – DN1200)
Wall Thickness Series SCH 5S, 10S, 20S, 40S, 80S, 160, STD, XS, XXS (1.0 – 35 mm)
Geometric Type Concentric Reducer, Eccentric Reducer
End Connection Style Butt-weld (BW) — beveled ends; Socket-weld (SW) — square cut
Bevel Specification 37.5° ± 2.5° bevel, 1.6 mm root face, per ASME B16.25 or DIN 2616
Diameter Tolerance OD: ±1.6 mm (DN ≤ 200); ID: ±0.8 mm; Wall: ±10% (schedule-dependent)
Out-of-Roundness ≤1.0% for seamless; ≤1.5% for welded (measured at pipe ends)


FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
