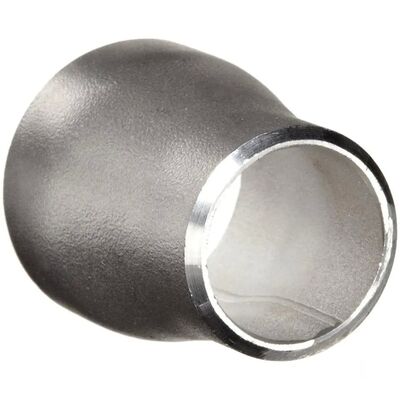

Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
제품 상세 정보
| 제품명 | 일정 40 스테인레스 스틸 맞대기 용접 감속기 ASME B16.9 클래스 150 플랜지 끝 | 끝 유형 | 동심 |
|---|---|---|---|
| 헤드 코드 | 원 | 지불 기간 | T/T/L/C/Western Union/Paypal |
| 압력 | Sch5s-Sch160 | 기준 | ASTM A403, ASME B16.9 |
| 용도산업 | 석유 및 가스, 화학, 식품 가공, 제약 | 연결 유형 | 버트 접합 |
| 운송 패키지 | 나무 상자 또는 팔레트 | 이름 축소기 | 스테인레스 강 환원제 |
| 연결 종료 | 스레드 | 시험 | x-레이 검사, 수압 시험, UT 검사 |
| 소재 감소기 | 스테인리스 스틸 /304/316L/1.1307/1.4404 | 유형 | 콘크리트 감소기 |
| 인증 | ASTM A403, ASME B16.9 | 마치다 | 광택, 무광택 또는 브러시 처리 |
| 강조하다 | ASME B16.9 Class 150 Stainless Steel Reducer,Schedule 40 Butt Welding Reducer,Flange End Pipe Fitting Reducer |
||
제품 설명
Schedule 40 Stainless Steel Butt Welding Reducer ASME B16.9 Class 150 Flange End
1. Product Description
Stainless Steel Reducer is a pipe fitting designed to connect pipes of different diameters, ensuring smooth diameter transition and reduced fluid turbulence. Available in two types: Concentric (centerlines aligned) and Eccentric (offset design with a flat side)
2. Product Applications
-
Petroleum & Natural Gas
-
Chemical & Petrochemical
-
Water Supply & Treatment
-
Power Generation
-
Pharmaceutical & Food Processing
-
Marine & Shipbuilding
-
HVAC & Refrigeration
-
Construction & Papermaking
3.Product Advantages
-
Superior corrosion & rust resistance for harsh environments.
-
High mechanical strength with excellent pressure and wear resistance.
-
Precision machined for secure, leak-proof connections.
-
Integrated stamping forming reduces fracture risks.
-
Low maintenance, waterproof, and long service life.
-
Pressure loss < 5%; operating temperature from -20°C to 400°C.
-
Customizable sizes, materials, and surface finishes available.
4.Key Product Parameters
| Parameter | Specification |
| Material Grades | 304, 304L, 316, 316L, 317, 317L, 321, 310, 347, 904L, Duplex, Super Duplex |
| Size Range | Seamless: 1/2" – 20" (DN15 – DN500) Welded: 1/2" – 48" (DN15 – DN1200) |
| Wall Thickness | SCH 5S, 10S, 20S, 40S, 80S, STD, XS (1mm – 30mm) |
| Types | Concentric, Eccentric |
| Connections | Butt Weld, Socket Weld |
| Standards | ASME B16.9, ASME B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459 |
| Tensile Strength | ≥515 MPa (316 SS) |
| Surface Finish | Polished, Sandblasting, Electro-polished |
| Temp. Range | -20°C to 400°C |
| Pressure Loss | <5% |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
